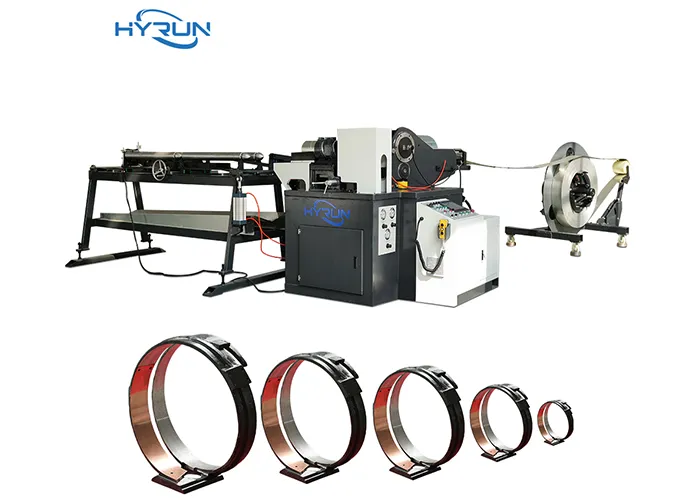

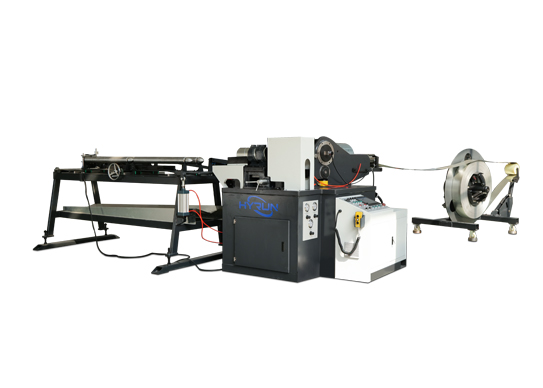

Tube Mold Spiral Duct Machine

Features of Tube Mold Spiral Duct Machine

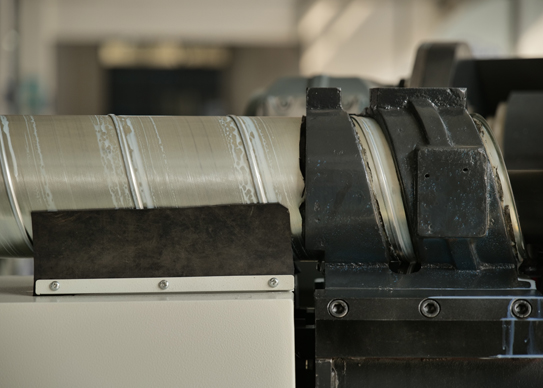

• Fixed Aluminum Mold Structure: Ensures precise diameter consistency, rapid mold changes (<20 min), and stable high-speed forming for HVAC-grade ducts.

• HYRUN-Designed Quick-Change System: Enables tool-free mold replacement and effortless debugging, minimizing production downtime between diameter shifts.

• Precision Diameter Control: Maintains ±0.5mm tolerance across all duct sizes with rigid mold alignment technology.

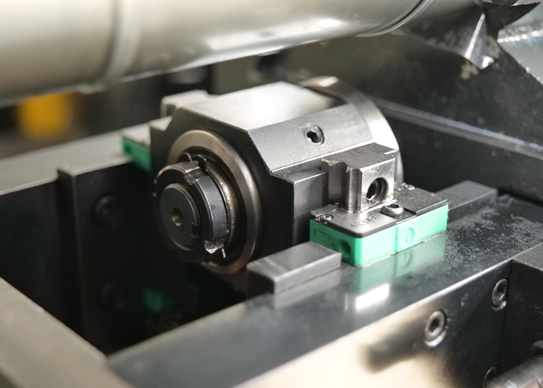

• HYRUN High-Speed Flying Shear: Delivers burr-free, smooth duct cross-sections at 5+ cuts/min without stopping production flow.

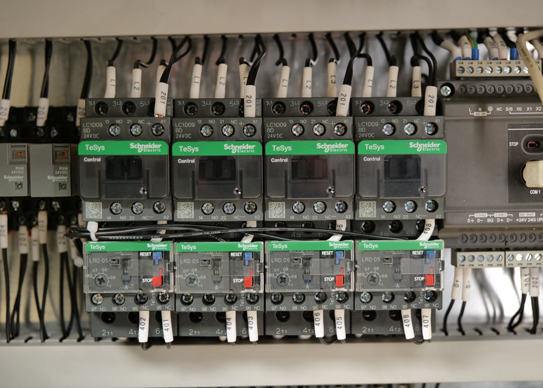

• Programmable PLC Operation: Customize duct lengths (50-3000mm) via touchscreen interface with real-time production monitoring.

Steps to Use and Points to Note of Tube Mold Spiral Duct Machine

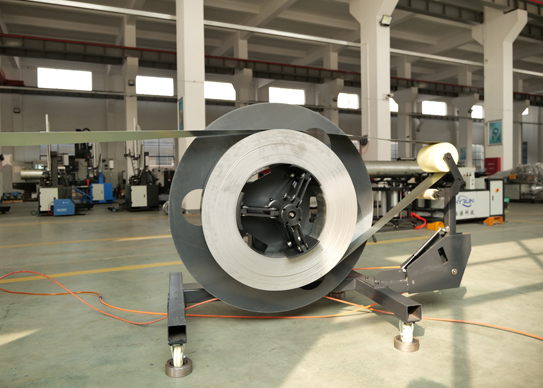

• Setup & Calibration: Secure the HYRUN mold cartridge (specified for duct diameter), align galvanized/aluminum coil (0.4-1.2mm thickness), and calibrate feed tension via HMI to ±5% tolerance.

• Production Operation: Initiate continuous spiral forming at ≤25m/min; monitor edge lock seam engagement and OD consistency (±0.5mm variance) via laser sensors.

• Shutdown Protocol: Purge residual metal dust using HYRUN’s integrated air jets, then apply food-grade lubricant to mold cavities to prevent corrosion.

• Critical Precautions: Never bypass safety interlocks during jam clearance. Replace worn HYRUN molds after 50K cycles to maintain SMACNA profile compliance. Use hearing protection (≥85 dB operational noise).
