Auto Duct Line 5

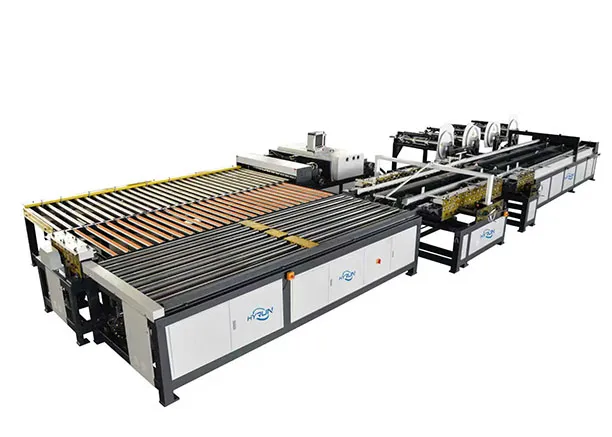

Basic Configuration of Auto Duct Line 5

The standard setup consists of two electric decoiler cradles with four material support trays (each capable of holding 5-7 ton coils), one support rack, one Line 2 main host unit, a mechanical arm for gripping, positioning, and transferring sheets, one displacement-type Pittsburgh lock forming machine, one duplex TDF flange forming machine, one duplex angle-steel flange forming machine, one servo-driven feeding platform, one hydraulic folding and bending machine, and a complete computer control system.

Features of Auto Duct Line 5

• Fully Automated Operation: HYRUN's smart PLC system powers this auto duct line 5 with true hands-free production and ≤0.5 mm dimensional tolerance.




• High-Speed Processing: As a high-performance auto duct production line, it delivers 25 m/min throughput while maintaining ±0.3 mm seam accuracy, even on spiral ducts.




• Multi-Material Compatibility: The auto duct line seamlessly processes galvanized steel (0.5-1.2 mm) and aluminum sheets thanks to automatic tool adjustment.




• Energy-Efficient Design: Compared to conventional lines, this auto duct line 5 reduces power consumption by 30 % through advanced servo-driven components.




• Modular Expansion Ready: Pre-wired ports allow easy integration of optional HYRUN flange forming or damper insertion modules for future upgrades.

Steps to Use and Points to Note of Auto Duct Line 5

• Material Preparation: Load galvanized coils (0.5-1.2 mm) and align them precisely using the built-in laser-guided feeding system of the auto duct production line.

• Parameter Setup: Choose duct diameter and speed directly on the PLC touchscreen – HYRUN presets cover the full 80–1200 mm range.

• Automated Production: Monitor real-time seam formation (±0.3 mm tolerance) and auto-cutting via infrared sensors during operation.

• Safety Protocols: Always verify emergency stops (0.5 s response time) before starting batch processing on the auto duct line.

• Maintenance: Clean forming rollers weekly and lubricate servo motors according to HYRUN’s recommended 500-hour cycle to keep your auto duct line 5 running at peak performance.
