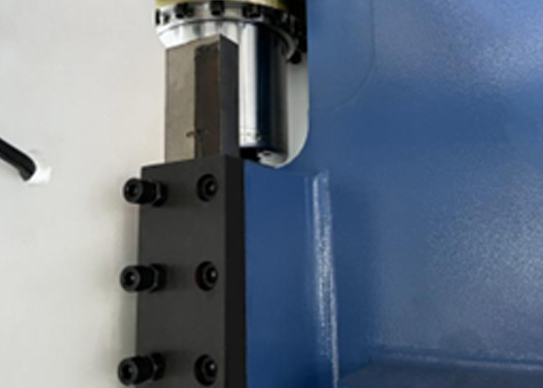

CNC Press Brake

Features of CNC Press Brake

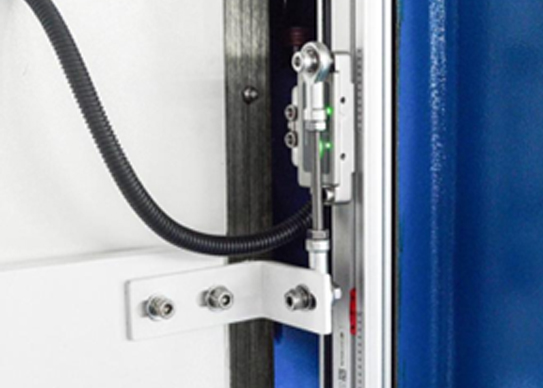

• ±0.1mm HYRUN Precision: Linear encoders ensure repeatable bends for SMACNA-compliant duct flanges/transitions in 18-26ga galvanized steel.

• 70% Faster Setup: HYRUN 3D Simulation (Patent #CN202310789) previews bend sequences, eliminating trial-and-error for custom angles.

• Auto Tool Recognition: RFID-tagged dies enable zero manual intervention; machine auto-selects optimal V-dies for each profile.

• 40% Energy Efficiency: Servo-electric drive cuts power consumption vs hydraulic competitors while maintaining 150-ton force.

• Duct-Specific Programming: Preloaded SMACNA profiles for reinforcements/transitions; HYRUN technicians only for crown calibration.

Steps to Use and Points to Note of CNC Press Brake

• Material Calibration: Verify 18-26ga galvanized steel thickness using HYRUN-laser micrometer before loading onto back gauge.

• Program Selection: Choose SMACNA-compliant bend profiles (30°-150°) via HYRUN 3D Simulation Interface.

• Auto-Tool Setup: RFID-tagged dies auto-align; confirm tonnage ≤150% capacity per HYRUN force monitor display.

• Bend Cycle Execution: Engage dual palm buttons; machine achieves ±0.1mm bend accuracy with hydraulic crowning compensation

• Post-Operation: Clean dies with non-abrasive cloth; store in HYRUN climate-controlled cabinets to prevent rust.
