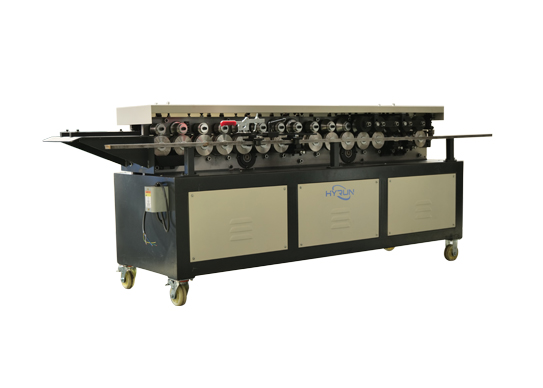

TDF Flange Forming Machine

Features of TDF Flange Forming Machine

• Precision Forming Technology‌: HYRUN's servo-controlled system ensures ±0.1mm accuracy for perfect TDF flange profiles.

• Multi-Gauge Compatibility‌: Processes galvanized steel from 0.6mm to 1.2mm thickness without tool changes.

• High-Speed Production‌: Achieves 15-20 meters/minute forming speed with HYTECH™ motion control.

• Dual-Station Operation‌: Simultaneously forms both male and female TDF flanges for efficient ductwork production.

• Energy-Saving Design‌: Reduces power consumption by 25% with HYRUN's intelligent power management system.

Steps to Use and Points to Note of TDF Flange Forming Machine

• Material Loading‌: Feed galvanized steel coils (0.6-1.2mm) into HYRUN's auto-feeder, ensuring smooth unwinding without surface scratches.

• Tooling Setup‌: Select proper dies for TDF flange profiles (typically 10mm/13mm/16mm) using HYTECH™ quick-change system.

• Parameter Adjustment‌: Set forming speed (15-20m/min) and pressure (3.5-4.2MPa) via touchscreen based on material thickness.

• Quality Verification‌: Check first-piece flange dimensions (±0.1mm tolerance) before continuous production.

• Maintenance Alert‌: Lubricate guide rails weekly and inspect hydraulic oil level (min. 85%) for optimal HYRUN machine performance.
