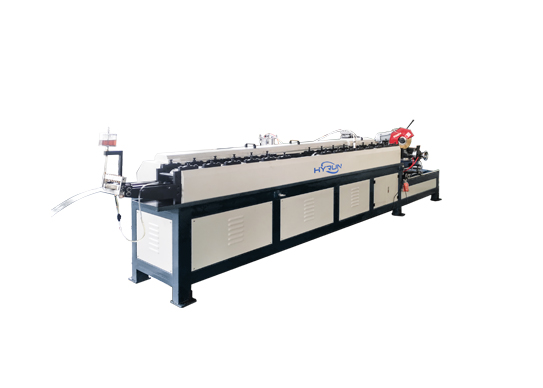

TDC Flange Forming Machine

Features of TDC Flange Forming Machine

• High-Speed Flanging‌: HYRUN's servo-driven system forms flanges at 8-10 meters/minute with ±0.1mm precision.

• Multi-Standard Compatibility‌: Processes TDC, TDF, and American flange types (16-30mm height range).

• Smart Thickness Detection‌: HYTECH™ sensors auto-adjust rollers for 0.5-2.0mm materials without manual calibration.

• Modular Tooling System‌: Quick-change dies (under 3 minutes) support various duct sizes (100-2000mm).

• Energy-Efficient Design‌: Regenerative braking reduces power consumption by 30% versus conventional models.

Steps to Use and Points to Note of TDC Flange Forming Machine

• Material Preparation‌: Load galvanized steel coils (0.5-2.0mm) into HYRUN's auto-feeder, ensuring smooth alignment.

• Profile Selection‌: Choose TDC/TDF flange types via HYTECH™ touchscreen (16-30mm height presets).

• Precision Forming‌: Monitor servo-driven rollers forming at 8-10m/min (±0.1mm tolerance).

• Quality Control‌: Verify flange dimensions every 20 meters using laser sensors.

• Maintenance‌: Lubricate guide rails weekly and check hydraulic pressure (maintain 14±0.5MPa).
