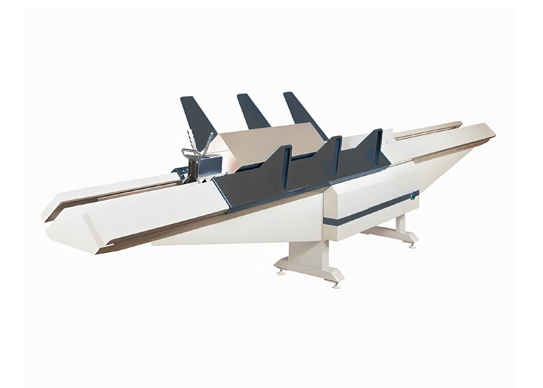

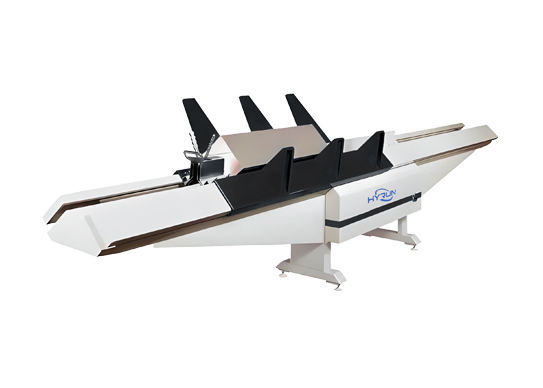

Square Duct Seam Closing Machine

Features of Square Duct Seam Closing Machine

• High-Speed Seaming‌: HYRUN's servo system closes seams at 12-15m/min with ±0.15mm precision for square ducts.

• Multi-Size Compatibility‌: Processes duct sizes 100-1200mm with quick-adjust HYTECH™ clamps (changeover<2min).

• Intelligent Alignment‌: Laser-guided sensors auto-correct panel misalignment (tolerance<0.3mm).

• Durable Tooling‌: Tungsten-carbide rollers withstand 10,000+ cycles (0.5-1.5mm galvanized steel).

• Energy-Saving Design‌: Regenerative braking reduces power consumption by 25% versus standard machines.

Steps to Use and Points to Note of Square Duct Seam Closing Machine

• Panel Loading‌: Align square duct panels (100-1200mm) into HYRUN's feeding guide with ≤0.5mm gap tolerance.

• Seam Setting‌: Select seam type (Pittsburgh/lock-forming) via HYTECH™ interface (pressure preset 8-12MPa).

• Precision Closing‌: Monitor servo-driven rollers operating at 12-15m/min (auto-stop if misalignment >0.3mm detected).

• Quality Verification‌: Check seam tightness every 10 ducts using 0.1mm feeler gauge.

• Maintenance‌: Clean carbide rollers weekly and inspect hydraulic oil (ISO VG 46, change every 800hrs).
