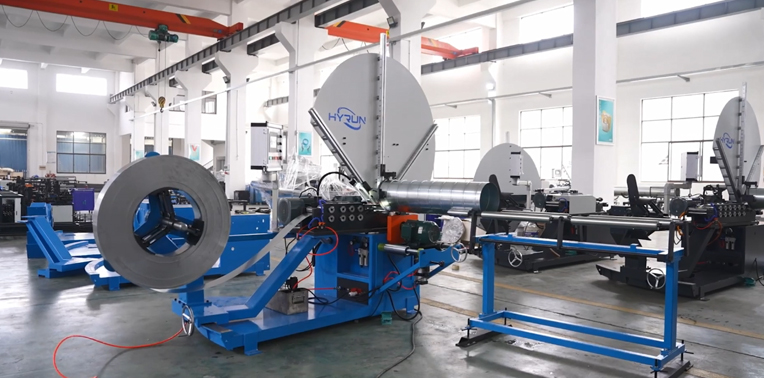

Spiral Duct Machine - High Precision & Efficiency

• Material Feeding & Leveling

  Coiled steel strip is automatically fed into the spiral duct machine and precisely leveled to ensure flatness for consistent forming.

• Continuous Spiral Forming

  The strip passes through forming rollers in the spiral duct forming machine, progressively bending it into a continuous spiral profile with precise interlocking seams.

• Seam Locking

  Specialized rollers inside the spiral tube form tight interlock of the seam edges, creating a strong, airtight, and leak-resistant spiral duct structure.

• Automatic Cutting

  Integrated cutting systems (saw or shear) accurately cut the continuously formed spiral duct to predetermined lengths based on programmed settings.

• Finished Duct Ejection

  The completed, rigid round spiral duct section is automatically ejected from the production line, ready for further processing or installation using a spiral duct fitting machine when needed.

·  Automated Material Processing

The spiral duct forming machine continuously unwinds, levels, and feeds coiled steel strip with servo-driven precision, ensuring consistent tension and flatness throughout the entire process. This advanced feeding system eliminates wrinkles, material deviation, or unnecessary downtime, enabling smooth, high-volume production while minimizing waste and preserving material integrity — perfect for demanding duct fabrication shops.

·  Precision Spiral Forming

Equipped with multi-station hardened forming rollers (available in 4- or 6-roller configurations depending on the model), this spiral pipe machine expertly bends and locks the strip edges into a strong, airtight spiral seam.

·  Programmable Cutting

Integrated high-speed automatic saw or flying shear systems provide accurate, clean, burr-free cutting to exact preset lengths. Operators can easily program precise duct dimensions directly through the interface, allowing flexible production of variable-length runs with perfectly clean cross-sections — ready for immediate flanging, connection, or installation.

·  PLC-Driven Control

HYRUN's advanced PLC interface, complete with an intuitive touchscreen HMI, gives operators real-time monitoring, simple parameter setting (diameter, length, speed), and intelligent optimization for maximum production efficiency.

Spiral duct machines are used to produce strong, seamless round metal ducts that provide excellent airflow with minimal leaks and resistance, making them ideal for energy-efficient air distribution. These ducts are mainly employed in HVAC systems for heating, ventilation, and air conditioning, where they deliver fresh air, exhaust stale air, and distribute conditioned air in residential homes, offices, hospitals, data centers, and large commercial buildings. Beyond HVAC, they are widely used for industrial ventilation to remove fumes, dust, and smoke from factories, workshops, and mines, creating safer working environments. They also serve in kitchen exhaust systems for restaurants, garage ventilation, and other fume-removal applications. Additionally, spiral ducts are applied in conveying dry bulk materials such as sawdust, grain, or powders, and they can function as protective jacketing around insulation or other pipes.
