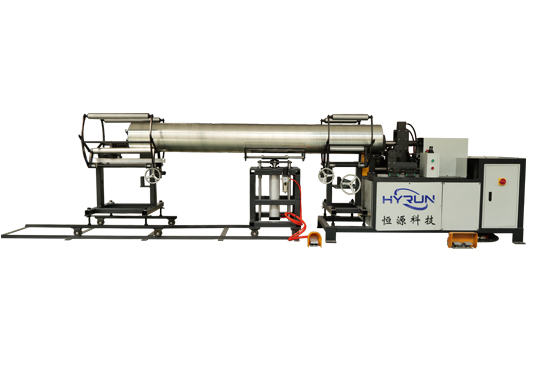

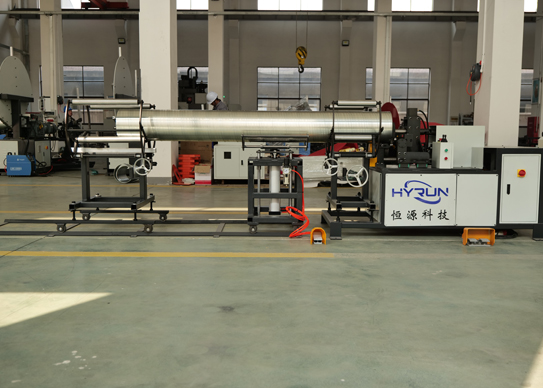

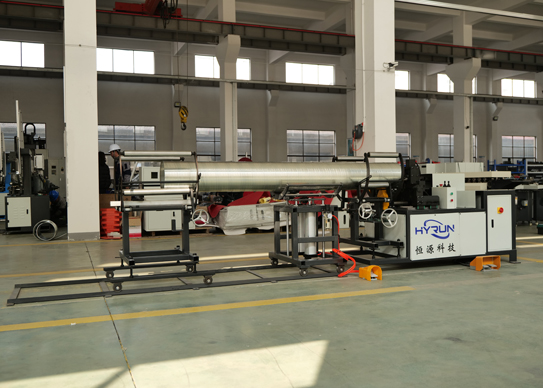

Spiral Duct Flanging Machine

Features of Spiral Duct Flanging Machine

• Precision Flange Formation: Accurately forms industry-standard angle flanges and saddle flanges on spiral duct ends with ±0.3mm tolerance.

• Seamless Line Integration: Engineered for smooth integration with spiral duct production lines, minimizing workflow disruption.

• Robust Material Handling: Reliably processes GI, SGCC, and aluminum coils (0.5-1.5mm gauge) without deformation.

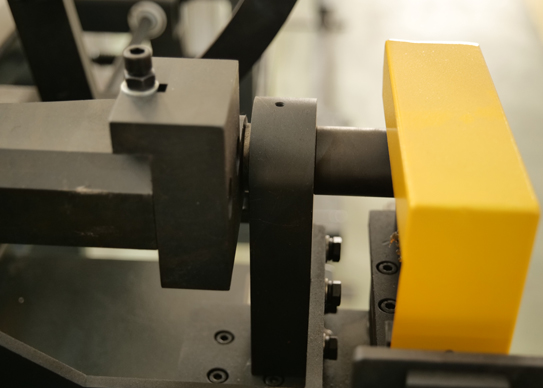

• HYRUN Durability Design: Features heavy-duty rollers and hardened tooling for extended service life in demanding industrial environments.

• Leak-Resistant Joints: Ensures consistently tight, air-sealed flange connections for commercial/industrial HVAC systems.

• Reduced Manual Labor: Automates flange forming, cutting labor costs by up to 70% versus traditional methods.

Steps to Use and Points to Note of Spiral Duct Flanging Machine

• Material Preparation: Load certified GI/SGCC/Al coils (0.5-1.5mm) ensuring debris-free surfaces and consistent width.

• Machine Setup: Select flange profile (angle/saddle); calibrate forming rollers per HYRUN’s technical manual with ±0.3mm tolerance verification.

• Production Run: Feed spiral duct ends steadily; monitor flange alignment via laser guides. Never bypass safety guards during operation.

• Quality Control: Check flange perpendicularity (≤1° deviation) and joint tightness using SMACNA-compliant gauges hourly.

• Maintenance: Lubricate rollers weekly with HYRUN-approved grease; inspect electrical connections monthly per IEC 60204-1.
