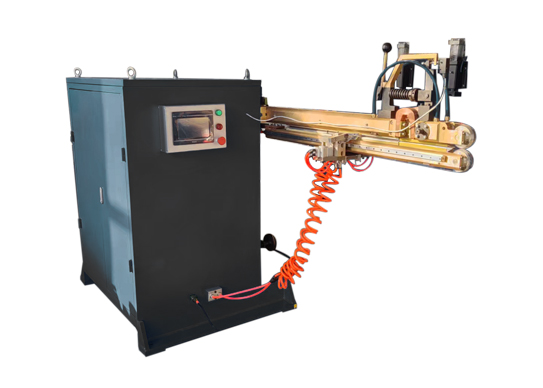

Seam Stitch Welding Machine

‌HYRUN Seam Stitch Welding Machine‌ delivers high-speed precision welding for HVAC duct fabrication. Our servo-driven system executes consistent 0.8-1.2mm stitches at 0-6m/min with automatic gap compensation. Integrated HYTECH™ cooling reduces thermal distortion by 40% versus conventional welders. PLC touchscreen enables seamless profile switching for round/rectangular ducts. Features EN 60204-1 compliant electrical safety and remote monitoring via HYTRUN Connect™. Engineered for low-spatter production in industrial HVAC lines.

Get a Quote

Specifications of Seam Stitch Welding Machine

ModelPlate ThicknessPlate LengthWelding DiameterWelding OverlapWeld SpeedWire DiameterPowerSizeWeight
SSW-10000.4~1.2mm50~1000Ø100~10006mm2m/minØ2.040KW2300×800×1300850KG


Features of Seam Stitch Welding Machine


  • Servo-Precision Welding‌: HYRUN's servo system ensures ±0.1mm accuracy for 0.8-3.0mm duct seams at 0-6m/min.

  • Smart Gap Compensation‌: Auto-adjusts for material variations, maintaining stitch consistency across duct lengths.

  • HYTECH™ Cooling Technology‌: Reduces thermal distortion by 40% versus conventional welding systems.

  • PLC Touchscreen Control‌: Stores 50+ duct profiles with one-touch switching between round/rectangular modes.

  • HYRUN Connect™ Monitoring‌: Real-time diagnostics and production tracking via cloud/mobile interface.



Steps to Use and Points to Note of Seam Stitch Welding Machine


  • Setup‌: Mount duct panels on HYRUN's alignment jig, ensuring ≤0.5mm gap between seams.

  • Profile Selection‌: Choose pre-loaded welding patterns via PLC touchscreen (round/rectangular).

  • Test Run‌: Execute 300mm trial stitch with HYTECH™ cooling activated.

  • Production‌: Engage auto-mode (0-6m/min) - the servo system compensates material variances.

  • Shutdown‌: Allow 90s cooldown before cleaning tungsten electrodes.
