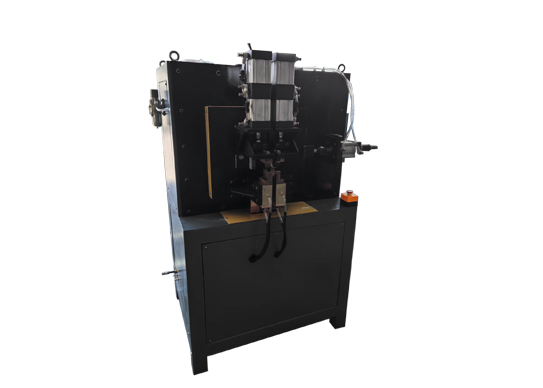

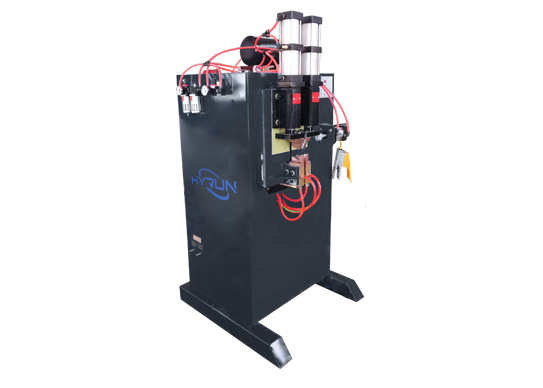

Round Flange Welding Machine

Features of Round Flange Welding Machine

• ±0.3mm HYRUN Seam Control: Patented arc regulation ensures uniform weld consistency on 18-22ga galvanized angle flanges per SMACNA standards.

• 3X Productivity Boost: Automated continuous welding at 1.5m/min eliminates manual stitch-welding bottlenecks.

• Zero Heat Distortion: HYRUN's pulsed current technology maintains material integrity within 120°C critical threshold.

• OSHA-Compliant Safety: Fume extraction + light barriers isolate operator from UV radiation and molten spatter.

• HYRUN Heavy-Duty Build: Water-cooled torch and CR12 alloy components withstand 24/7 shift operation.

Steps to Use and Points to Note of Round Flange Welding Machine

• Workpiece Preparation: Clean 18-22ga galvanized angle flanges with acetone; clamp securely on HYRUN rotating fixture.

• Welding Parameters: Set voltage/wire speed via HYRUN touchscreen per material thickness (SMACNA preset profiles available).

• Arc Initiation: Engage fume extraction and light barriers; start automated seam welding at 1.5m/min.

• Real-Time Monitoring: Verify ±0.3mm weld consistency using HYRUN thermal camera display (max 120°C).

• Post-Weld Protocol: Power down, purge water-cooling lines, and store torch in HYRUN-dedicated rack.
