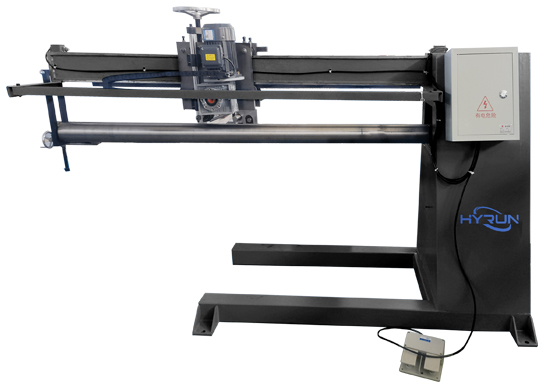

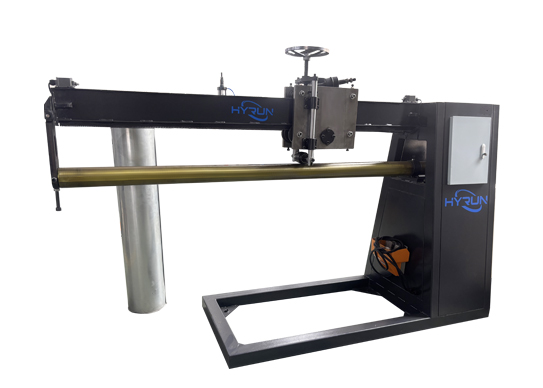

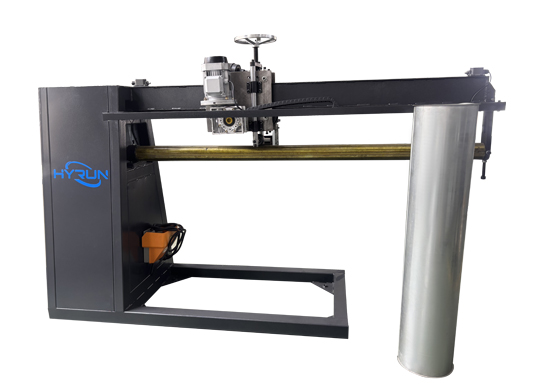

Round Duct Seam Closing Machine

Features of Round Duct Seam Closing Machine

• Precision Seam Alignment‌: HYRUN's laser-guided positioning ensures ±0.15mm seam accuracy for Ø100-1500mm ducts.

• Servo-Controlled Pressure‌: Adaptive 5-25kN compression force adjusts automatically for different gauges (0.5-2.0mm).

• High-Speed Production‌: Maintains consistent 12m/min closing speed with auto-feed synchronization.

• Tool-Free Die Change‌: Quick-release mechanism reduces setup time to<3 minutes between duct sizes.

• CE-Certified Safety‌: Dual emergency stops and light curtains meet EN ISO 13849-1 standards.

Steps to Use and Points to Note of Round Duct Seam Closing Machine

• Pre-Operation Check‌: Verify roller alignment (HYRUN calibration tool included) and lubricate guide rails before startup.

• Material Loading‌: Align duct seam precisely with laser markers - max deviation 0.5mm for optimal closure.

• Pressure Adjustment‌: Set servo pressure (5-25kN) based on duct gauge (0.5-2.0mm) via touchscreen interface.

• Continuous Operation‌: Maintain ≤12m/min feed speed; clear debris every 2hrs using included pneumatic cleaner.

• Safety Shutdown‌: Engage dual emergency stops when changing dies - wait for full spindle stop (confirmed by LED).
