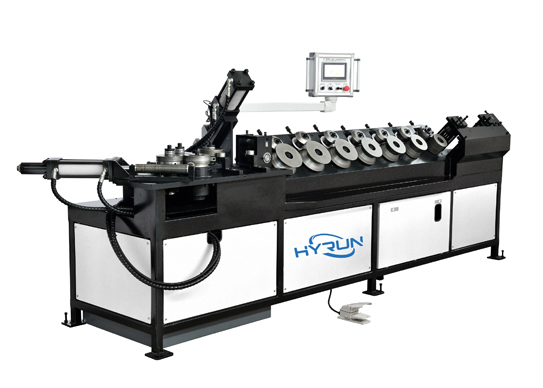

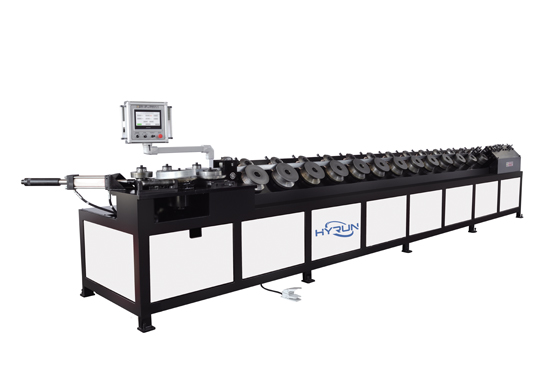

Round Duct Flange Forming Machine

Features of Round Duct Flange Forming Machine

• ±0.5° Servo Precision: Guarantees leak-free joints for 18-24 gauge galvanized steel with HYRUN-calibrated servo motors.

• 15-20s Rapid Cycles: Automated cut-bend-eject sequence boosts output 40% vs manual forming.

• Zero Hydraulic Costs: Electric drive eliminates oil/filters, cutting 30% annual operating expenses.

• OSHA Safety System: Infrared light curtains + dual emergency stops ensure full operator protection.

• HYRUN Durable Engineering: Laser-aligned steel frame maintains ±0.1mm tolerance under 24/7 duty.

Steps to Use and Points to Note of Round Duct Flange Forming Machine

• Material Preparation: Load 18-22 gauge galvanized steel strips, ensuring smooth feeding into the HYRUN alignment guide.

• Flange Profile Setup: Select angle/plate flange type and dimensions via HYRUN digital control panel.

• Single-Pass Forming: Engage safety guard; machine automatically punches, forms, and cuts flanges in one cycle.

• Quality Verification: Check flange flatness with straightedge and measure locking corner precision (±0.2mm).

• Post-Operation: Disconnect power, clean forming dies, and store in HYRUN-protective casing.
