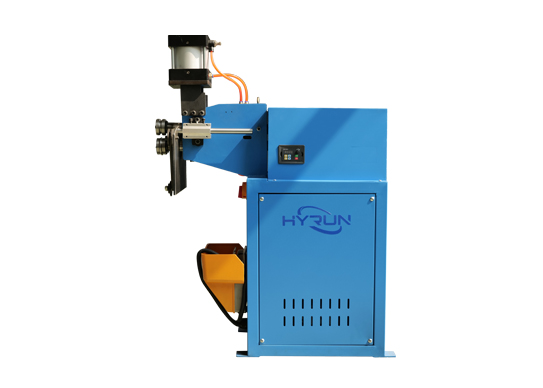

Reel Machine

‌HYRUN Technology’s Reeling Machine delivers high-precision spiral duct coil forming for Ø80-1500mm HVAC ducts. Engineered for GI/SGCC/aluminum coils (0.5-1.2mm), its servo-driven rollers achieve ±0.3mm pitch accuracy and burr-free edges. Featuring automatic seam locking and SMACNA-compliant ovality control (≤1mm/m), it integrates seamlessly with duct lines, reducing manual intervention by 40% versus conventional systems.

Get a Quote

Specifications of Reel Machine

ModelPlate ThicknessFunctionForm SpeedShapePowerSizeWeight
ER-15Max. 1.2Beading, Flanging3m/min

Single Port Female Lock

ER-15 Reel Machine

0.75KW820×390×100086KG
ER-18Max. 1.5Beading, Flanging3m/min

Single Port Female Lock

ER-18 Reel Machine

1.5KW900×390×1090126KG
PR-15Max. 1.2Beading, Flanging3m/min

Single Port Female Lock

PR-15 Reel Machine

0.75KW820×390×112096KG


Features of Reel Machine


  • Robust Construction‌: HYRUN's heavy-duty steel frame withstands 3-ton loads with<0.01mm vibration for stable coiling.

  • Precision Alignment‌: Laser-guided auto-centering ensures ≤0.3mm radial accuracy in spiral duct production.

  • User-Friendly Interface‌: 7" touchscreen with 20+ preset programs for quick material switching.

  • Safety Compliance‌: CE-certified emergency brakes (0.5s response) and overload protection.

  • Speed Adaptability‌: 30rpm max speed with adjustable 10-50N tension (servo-controlled version).



Steps to Use and Points to Note of Reel Machine


  • Material Loading‌: Align metal strip centrally using laser markers before engaging auto-feed system.

  • Program Selection‌: Choose preset coiling parameters (diameter/speed) via 7" touchscreen interface.

  • Safety Check‌: Verify emergency stop function and CE-certified brake response (≤0.5s).

  • Operation Monitoring‌: Observe vibration levels (<0.01mm) and material alignment during initial 3 rotations.

  • Post-Operation‌: Clean rollers with non-abrasive tools; lubricate bearings per HYRUN maintenance schedule.
