Rectangular Duct Machine, Square Tube/Duct Making Machine

Rectangular Duct Machines for Efficient Duct Assembly

Engineered for precision fabrication of HVAC duct components, HYRUN systems transform steel coils into ready-to-assemble parts through automated decoiling, servo-leveling, and sequential forming. Our technology fabricates Pittsburgh Lock Hem seams and TDF/TDC flanges (±0.3mm tolerance) while integrating rib punching, notch cutting, and fastener hole creation – delivering production-ready sections for efficient duct assembly.

Get a Quote 

Rectangular Duct Machine for HVAC Excellence

Auto Duct Line 5

End-to-End Duct Component Fabrication - Punching, Pittsburgh Locking, TDF Flange Forming & Edge Prep.

View More 

Auto Duct Line 3

Dedicated Rectangular/Square Component Fabrication - Servo Forming, Punching & Edge Preparation.

View More 

Pneumatic Folding Machine

Precision HVAC fitting fabrication - ±0.5° bend accuracy, rapid clamping & ergonomic safety controls.

View More 

Lock Forming Machine

Precision Multiple Lock Hemming for Duct Seams - ±0.5mm Tolerance, Leak-Proof Airtight Joints

View More 

Grooving Machine

Precision rib profiling for structural reinforcement - burr-free grooves, ±0.5mm tolerance.

View More 

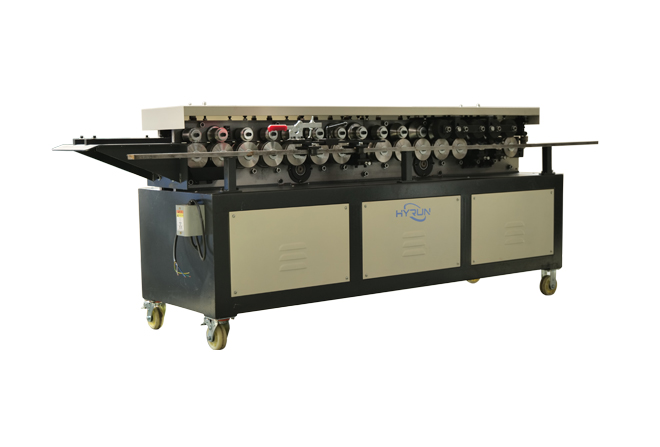

TDF Flange Forming Machine

Precision edge forming for duct connections - ±0.3mm tolerance, automated production-ready profiles.

View More 

Square Duct Seam Closing Machine

Precision joint consolidation - calibrated 4-ton force, ±0.3mm alignment & leak-proof seals for stainless ducts.

View More 

Hydraulic Seam Closing Machine

Precision Stainless Duct Sealing - Calibrated 5-Ton Force, ±0.3mm Alignment & Leak-Proof Joints.

View More 

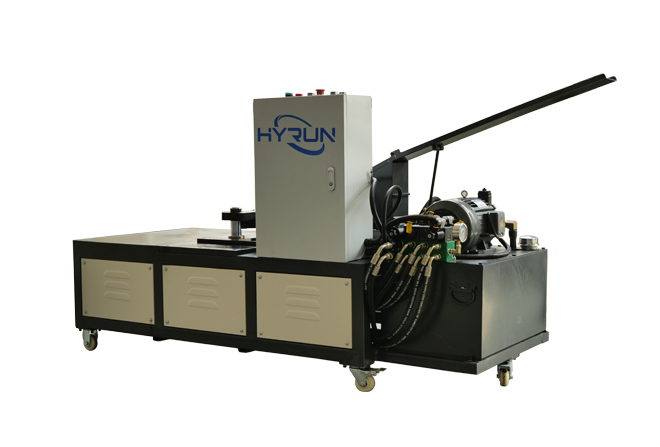

Corner Binding Machine

Precision Angle Code Fabrication for Duct Reinforcement - ±0.5mm Tolerance, Burr-Free Edges.

View More 

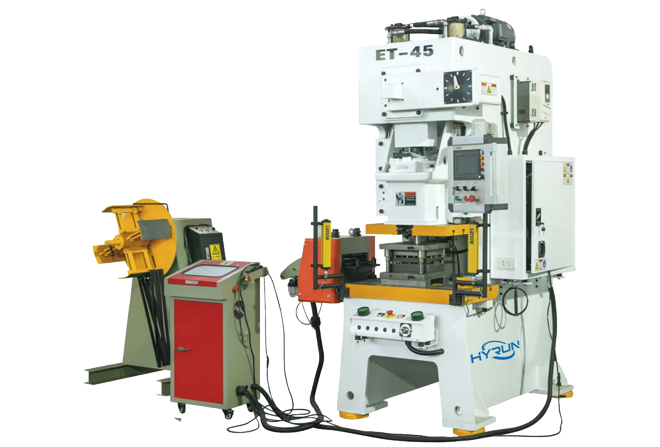

Corner Production Line

Automated Angle Code Fabrication - Precision Punching & Bending for Duct Reinforcement, ±0.5mm Tolerance.

View More 

TDC Flange Forming Machine

Precision edge profiling for duct connections - ±0.3mm tolerance, automated clip-ready output.

View More 

Electric Seam Closing Machine

Portable lock seam consolidation - 3-ton force for airtight lock hemming joints after male/female engagement.

View More 

HYRUN Rectangular Duct Machine Work Process

Coil Feeding & Leveling:
Steel coil is auto-feed through precision rollers, eliminating curvature for flawlessly flat material.
Corner Notching & Bending:
Servo-adjusted dies notch corners and progressively bend sides at 90° with ±0.5mm dimensional accuracy.
Seam Locking:
Dual-head rollers form Pittsburgh/TDC locks on longitudinal edges for rigid, airtight seams.
Auto Flange Forming:
TDF/TDC flanges are robotically installed before finished ducts are formed.
PLC-Controlled Folding:
Metal sheet folding to programmed size during continuous operation.

HYRUN Rectangular Duct Machine Core Functions

Coil Decoiling & Leveling:
Servo-driven systems unwind/flatten metal sheet coils for precision processing.
Ribbing & Punching:
Forms stiffening ribs and punches notches/holes (corners, supports, fasteners).
Seam & Flange Forming:
Creates Pittsburgh locks and TDF flanges (±0.3mm) on sheet edges.
Bend Preparation:
Pre-forms longitudinal edges for subsequent duct assembly.
Component Output:
Produces ready-to-assemble duct sections with connection-ready profiles.

Advantages of HYRUN Square Duct Machines

HYRUN machines form airtight Pittsburgh Lock Hem seams with ±0.5mm edge alignment, eliminating air leakage while maintaining uniform corner rigidity for commercial HVAC ducts.

Design Advantage: Heavy-gauge quick-change tooling adapts to duct sizes in <3 minutes, while modular frames ensure 24/7 stability and reduce setup downtime by 40%.

Heavy-gauge quick-change tooling adapts to duct sizes in <3 minutes, while modular frames ensure 24/7 stability and reduce setup downtime by 40%.

Technical Advantage: Servo-controlled TDF/TDC flange formers create precise duct-connecting flanges (±0.3mm) at 15 units/minute, synchronizing with PLC-guided bending stations.

Servo-controlled TDF/TDC flange formers create precise duct-connecting flanges (±0.3mm) at 15 units/minute, synchronizing with PLC-guided bending stations.

HYRUN's automated Pittsburgh hemming and TDF flange forming cut labor by 35% and material waste by 18%, achieving ROI in 18 months.
