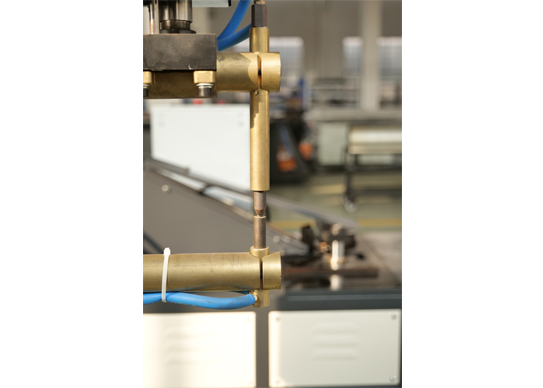

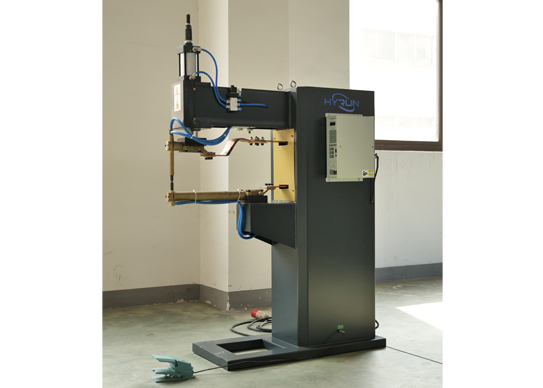

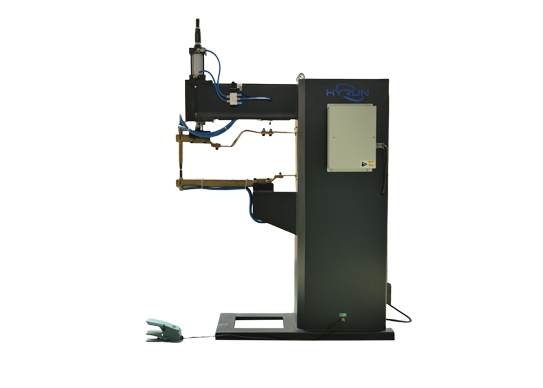

Pneumatic Spot Welding Machine

Features of Pneumatic Spot Welding Machine

• Precision Pneumatic System‌: HYRUN's 0.8mm repeatability ensures consistent spot welds on 0.5-2.5mm duct panels.

• 600N/cm² Servo Pressure‌: Programmable force control prevents panel deformation during HVAC duct fabrication.

• HYTECH™ Air Filtration‌: Integrated moisture/oil separator maintains stable pneumatic performance in workshop conditions.

• EN 1090 Compliance‌: Meets EU structural welding standards for industrial ductwork applications.

• 15% Faster Cycle Time‌: Patented electrode design reduces weld intervals versus manual operations.

Steps to Use and Points to Note of Pneumatic Spot Welding Machine

• Panel Alignment‌: Clamp duct panels (0.5-2.5mm) on HYRUN's magnetic jig with ≤1mm overlap.

• Pressure Setup‌: Adjust servo-pneumatic pressure (400-600N/cm²) via touchscreen for material thickness.

• Test Welding‌: Perform 3 trial spots - inspect nugget penetration (≥80% panel thickness).

• Production‌: Engage auto-mode (15 spots/min max) with HYTECH™ air filtration active.
