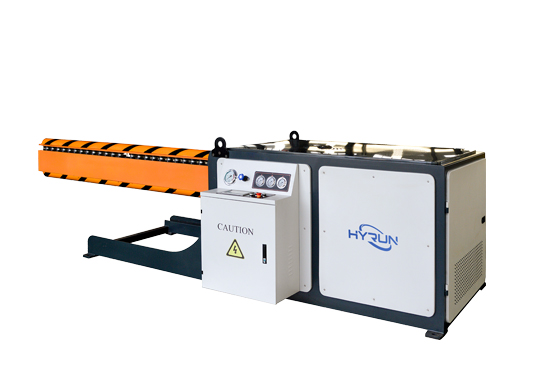

Oval Duct Machine

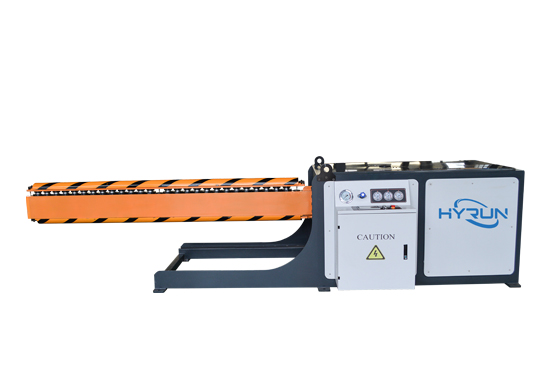

Features of Oval Duct Machine

• HYRUN Servo-Forming Precision: Advanced servo-electric system ensures smooth, distortion-free oval conversion of spiral ducts with ±0.3mm tolerance.

• Wide Material Compatibility: Processes 18-26 gauge galvanized steel and stainless steel for diverse architectural HVAC requirements.

• High-Capacity Production: Achieves 15-18 second cycle times for continuous oval duct forming in commercial projects.

• Tool-Free Profile Adjustment: Easily set minor/major axis dimensions (80-500mm) via HYRUN digital control interface.

• Structural Integrity Control: Patented roller system maintains uniform metal thickness and seam strength without manual welding.

• Space-Optimized Design: Compact footprint (2.1m × 1.4m) fits tight workshops while processing 1.2m duct sections.

• HYRUN Industrial Durability: Reinforced carbon steel frame withstands 24/7 operation with minimal vibration and alignment drift.

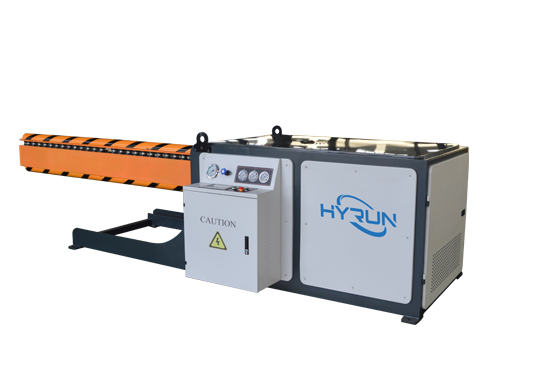

Steps to Use and Points to Note of Oval Duct Machine

• Spiral Duct Loading: Securely mount pre-formed spiral duct (Ø80-500mm) onto the feed system, ensuring smooth alignment with forming rollers.

• Axis Dimension Setup: Input minor/major oval dimensions via the HYRUN digital interface; verify settings match project specifications.

• Servo-Profiling Cycle: Engage safety guards and initiate conversion; servo motors reshape duct to oval profile in 15-18 seconds.

• Seam Integrity Check: Inspect automated seam formation for uniformity—no welding required per HYRUN’s patented roller design.

• Post-Operation Protocol: Power down using main disconnect, clean roller assemblies, and store protective end caps.
