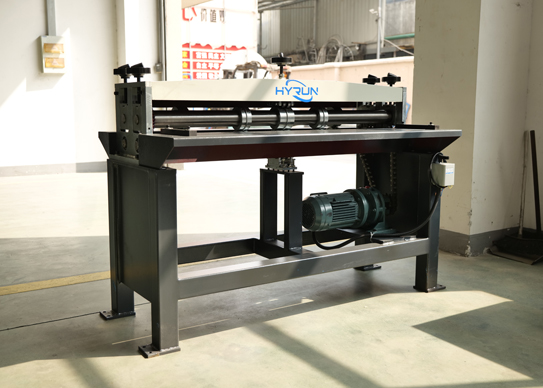

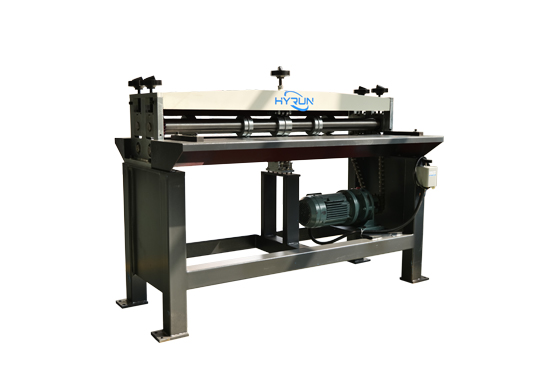

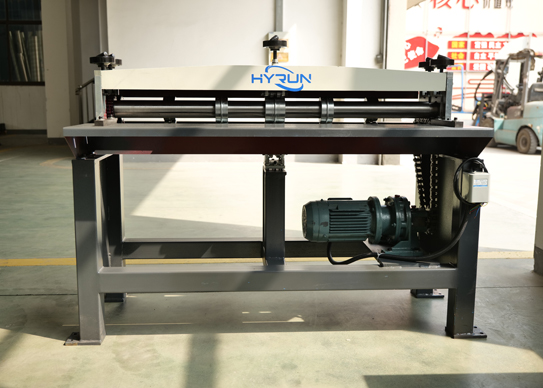

Grooving Machine

Features of Grooving Machine

• Manual Precision Control‌: HYRUN's mechanical dial adjustment ensures ±0.1mm grooving accuracy for duct fabrication.

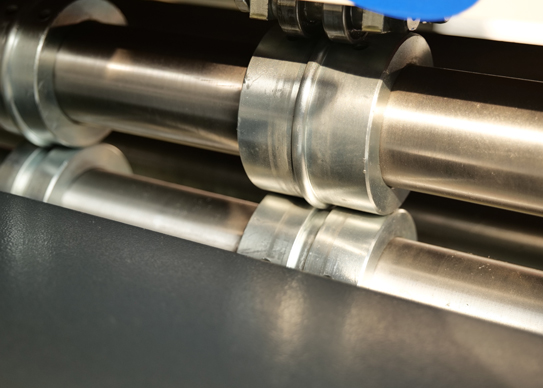

• Durable Tooling System‌: Hardened steel blades (HRC 58-62) handle 0.5-1.2mm galvanized sheets.

• Quick-Change Mechanism‌: Swap V/U-groove dies in<1 minute without special tools.

• Compact Footprint‌: 1200×800mm work area fits small shops (total weight 450kg).

• Safety Lock‌: Dual mechanical guards prevent accidental operation during adjustments.

Steps to Use and Points to Note of Grooving Machine

• Material Preparation‌: Ensure duct panels (0.5-1.2mm thickness) are clean and flat before loading onto HYRUN's alignment table.

• Groove Selection‌: Manually set V/U-groove dies according to duct specifications (adjustment range 20-150mm).

• Depth Calibration‌: Use mechanical gauge to set groove depth (±0.1mm accuracy) before locking the position.

• Operation‌: Feed material steadily at 3-5m/min speed; avoid stopping mid-process to prevent uneven grooves.

• Maintenance‌: Lubricate guide rails weekly and inspect blade sharpness after every 500 linear meters.
