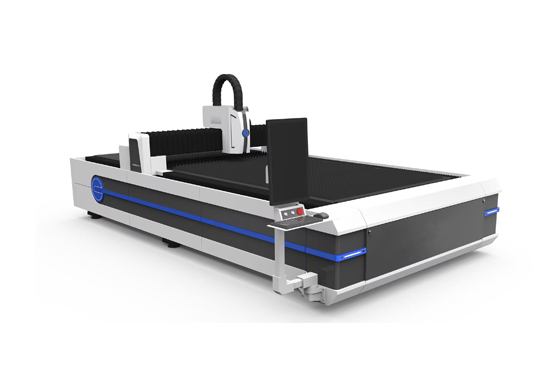

CNC Laser Cutting Machine

Features of Ductwork CNC Laser Cutting Machine

• Precision Cutting Performance‌: Achieves ±0.1mm accuracy with 1500W fiber laser for ductwork fabrication (0.5-3.0mm thickness).

• Material Efficiency‌: HYRUN's auto-nesting software reduces scrap rate by 25% with optimal layout algorithms.

• HVAC-Specific Programming‌: Preloaded 50+ duct patterns (round/rectangular) with parametric adjustment interface.

• Stable Operation System‌: Closed-loop water cooling maintains laser temperature within ±1°C during continuous work.

• Low Maintenance Design‌: Modular optical path requires only quarterly mirror cleaning per HYRUN protocols.

Steps to Use and Points to Note of Ductwork CNC Laser Cutting Machine

• Material Preparation‌: Secure galvanized steel sheets (0.5-3.0mm) on the worktable, ensuring flatness within 0.2mm tolerance.

• Program Selection‌: Load duct patterns from HYRUN's pre-installed HVAC library via 10.1" touchscreen.

• Laser Calibration‌: Verify focus position (±0.05mm) using integrated red dot positioning system before cutting.

• Safety Protocol‌: Activate dual light curtains and exhaust system to maintain fume concentration below 3mg/m³.

• Post-Processing‌: Remove slag with HYRUN-provided ceramic brush (included) to preserve nozzle lifespan.
