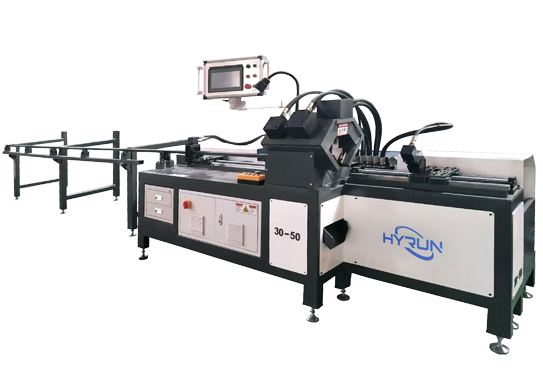

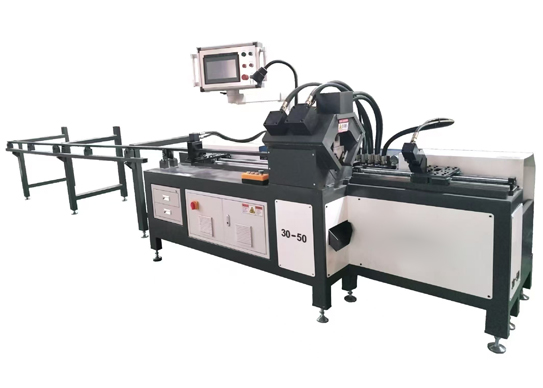

Angle Steel Punching Machine

Features of Angle Steel Punching Machine

• High-Speed Punching‌: Delivers 800 strokes/minute with ±0.05mm repeat accuracy for HVAC duct fabrication.

• Multi-Tool Flexibility‌: 12-station rotary turret supports simultaneous punching, notching, and embossing operations.

• Material Adaptability‌: Processes galvanized steel (0.5-2.5mm) and stainless steel (0.8-2.0mm) without tool change.

• Energy Efficiency‌: HYRUN's servo-driven system reduces power consumption by 40% vs hydraulic models.

• Smart Monitoring‌: Integrated sensors alert for misalignment (≥0.3mm) or tool wear (50μm threshold).

Steps to Use and Points to Note of Angle Steel Punching Machine

• Tool Setup‌: Install specified punch/die sets (max Ø25mm) in the 12-station turret following HYRUN's torque specifications.

• Material Alignment‌: Position galvanized steel sheets (0.5-2.5mm) against back gauge with ≤0.2mm positioning tolerance.

• Safety Check‌: Verify light curtain sensitivity (10mm detection) and oil level (min 80%) before batch processing.

• Maintenance Routine‌: Clean tool holders weekly with HYRUN-provided degreaser to prevent galvanized residue buildup.
