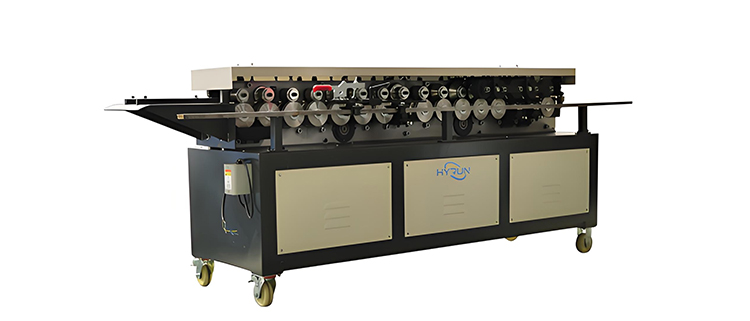

HYRUN Technology TDF Flange Forming Machine: High Efficiency and Precision, Empowering Duct Production

In rectangular HVAC duct systems, the precise formation of TDF flanges is key to ensuring sealing and structural strength. HYRUN Technology's TDF Flange Forming Machine is designed for B-end customers, employing one-time forming technology to process 18-24 gauge galvanized steel sheets, producing locking angles that meet SMACNA standards, with a tolerance of only ±0.3mm, and each flange formation takes only 8-10 seconds. This equipment eliminates manual folding errors, ensures 100% airtight seams, is equipped with HYRUN's patented roller system, and avoids material deformation, providing reliable assurance for high-volume flange production.

Technical Advantages, Enhancing Production Efficiency and Quality

HYRUN Technology's TDF Flange Forming Machine uses a servo control system, achieving forming precision up to ±0.1mm, ensuring flawless TDF flange profiles. The equipment supports processing galvanized steel sheets 0.6-1.2mm thick without needing mold changes, adapting to multi-specification production needs. HYTECH™ motion control technology achieves forming speeds of 15-20 meters/minute, significantly shortening the production cycle and helping B-end customers achieve efficient mass production.

The dual-station design can simultaneously form male and female TDF flanges, improving duct production efficiency. Moreover, the intelligent power management system reduces energy consumption by 25%, saving operational costs for enterprises. Whether for small and medium-sized factories or large production lines, HYRUN's TDF Flange Forming Machine provides stable and efficient solutions that meet stringent industry standards.

Easy Operation, Ensuring Safety and Smooth Production

To meet B-end customers' needs for operational convenience, HYRUN Technology provides clear operating steps and precautions. Before use, feed 0.6-1.2mm galvanized steel coils into the automatic feeding system to ensure no surface scratches. Using the HYTECH™ quick mold changing system, select the appropriate mold (10mm/13mm/16mm flange height), simplifying the setup process. Set forming speed (15-20 meters/minute) and pressure (3.5-4.2MPa) via the touch screen, optimizing adjustments according to material thickness.

Before starting production, check the dimensions of the first flange (tolerance ±0.1mm) to ensure it meets design requirements. For maintenance, it is recommended to lubricate the guide rails weekly and check the hydraulic oil level (minimum 85%) to maintain optimal equipment performance. These designs ensure simple, safe, and reliable operation, helping customers quickly transition from installation to efficient production.

Flexible Specifications, Meeting Diverse Needs

HYRUN Technology's TDF Flange Forming Machine offers various models to meet different production requirements. For example, the TDFF-12 model supports sheet thicknesses of 0.5-1.2mm, a flange height of 35±0.5mm, power of 3KW, equipment dimensions of 2770×660×1100mm, and a weight of 780KG; the TDFF-15 model supports sheet thicknesses of 0.8-1.5mm, power of 4KW, and a weight of 1000KG. The compact equipment design facilitates factory layout, suitable for various production environments.

As an ISO-certified product, HYRUN's TDF Flange Forming Machine can seamlessly integrate with spiral duct machines and laser cutting equipment, widely used in HVAC systems and industrial ventilation fields. Leveraging the strong production capacity of the new factory in Xuzhou, HYRUN ensures quick delivery to meet large volume orders from B-end customers. Customers can also enjoy free technical consultation and customize equipment parameters to fit specific projects.

HYRUN Technology adheres to the philosophy of "Craftsmanship creates quality, innovation drives development," with the TDF Flange Forming Machine providing efficient and precise solutions for duct manufacturing. We are dedicated to providing customers with high-performance equipment and full lifecycle support to optimize production processes. Contact HYRUN immediately to schedule a 15-minute technical consultation and explore how to enhance your production efficiency.
